Engineers are developing fabrics for protective suits that not only self-heal but also shield people from toxic materials.
They make the fabrics by dipping them in a series of liquids to create layers of material to form a self-healing, polyelectrolyte layer-by-layer coating.
“The coatings are thin, less than a micron, so they wouldn’t be noticed in everyday wear.”
Polyelectrolyte coatings are made up of positively and negatively charged polymers, in this case polymers like those in squid ring teeth proteins.
“We currently dip the whole garment to create the advanced material,” says Melik C. Demirel, professor of engineering science and mechanics at Penn State. “But we could do the threads first, before manufacturing if we wanted to.”
During the layering, enzymes can be incorporated into the coating. The researchers used urease—the enzyme that breaks urea into ammonia and carbon dioxide—but in commercial use, the coating would be tailored with enzymes matched to the chemical being targeted.
“If you need to use enzymes for biological or chemical effects, you can have an encapsulated enzyme with self-healing properties degrade the toxin before it reaches the skin,” says Demirel.
Many toxic substances can be absorbed through the skin. Organophosphates, for example, which are used as herbicides and insecticides are absorbed through the skin and can be lethal. Some of these chemicals have also been used as nerve agents.

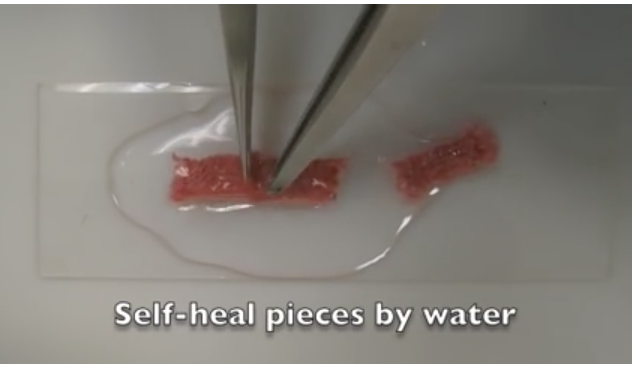

A garment coated with a self-healing film containing an organophosphate hydrolase, an enzyme that breaks down the toxic material, could limit exposure. The squid ring teeth polymer is self-healing in the presence of water, so laundering would repair micro and macro defects in the coating, making the garments rewearable and reusable.
“The coatings are thin, less than a micron, so they wouldn’t be noticed in everyday wear,” says Demirel. “Even thin, they increase the overall strength of the material.”
For manufacturing environments where hazardous chemicals are necessary, clothing coated with the proper enzyme combination could protect against accidental chemical releases. Future use of these coatings in medical meshes could also help patients minimize infections for quick recovery.
“For the first time we are making self-healing textiles,” says Demirel.
“Fashion designers use natural fibers made of proteins like wool or silk that are expensive and they are not self-healing,” says Demirel. “We were looking for a way to make fabrics self-healing using conventional textiles. So we came up with this coating technology.”
The team describes the technique in ACS Applied Materials and Interfaces.
Researchers from Drexel University and the US Naval Research Laboratory also worked on the project. The Army Research Office and the Office of Naval Research supported the work.
Source: Penn State , Original Study DOI: 10.1021/acsami.6b05232, CC by 4.0 International
